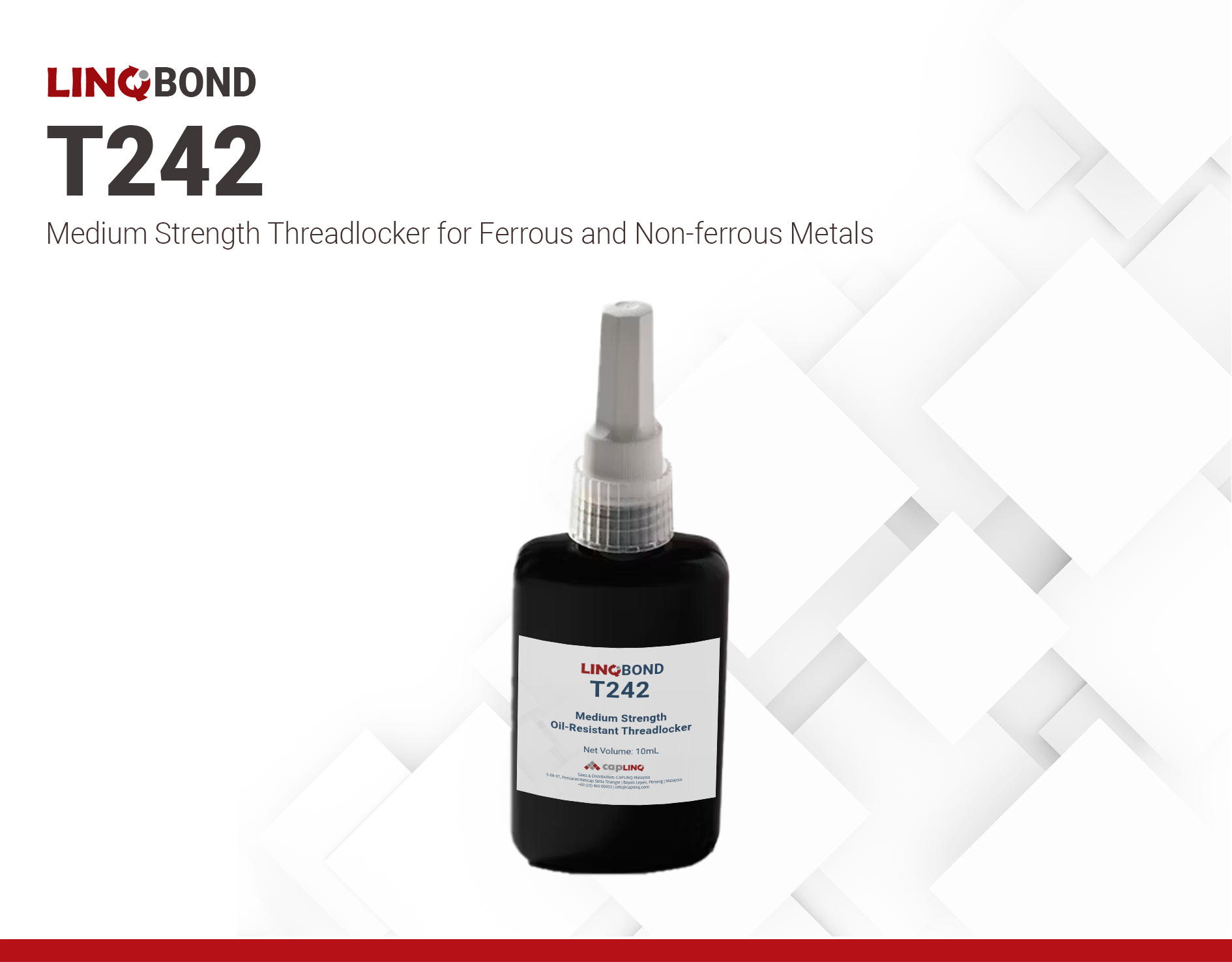

LINQBOND T242 | Medium Strength Threadlocker

Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg

LINQBOND T242 | Medium Strength Threadlocker

Main features

Good adhesion to ferrous and non-ferrous metals
Good chemical resistance
Removable

Product Description

LINQBOND T242 is medium strength, general purpose, removable threadlocker for fasteners bettween 1/4" and 3/4" (6 to 20 mm) diameters. It has controlled lubricity for accurate clamp loads and parts can easily be separable using hand-held tools.

LINQBOND T242 is a medium viscosity, medium strength threadlocking adhesives for ferrous and non-ferrous threaded fasteners. Cured performance is consistent with other industrial fastener finishes such as black oxide and zinc plated steel. LINQBOND T242 has good solvent resistance against most industrial solvents and can be used on most metal surfaces including oily steel, stainless steel, aluminum, and zinc-plated metals. It is also formulated to provide a consistent torque-tension relationship across the recommended torque range for grade 5 fasteners.

Product Family
T242

1. Select Package Type

Bottle

2. Available Paper Size

50g

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Shortest leadtime

Shipping in 4 - 6 weeks

Contact for Pricing

Packaging

TDS, SDS & Technical documents

Specifications
Additional Information

Technical Specifications

General Properties

Specific Gravity

Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.

1.1

Physical Properties

Viscosity

Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application

1,200 - 5,000 mPa.s

Mechanical Properties

Hardness Hardness Hardness is a dimensionless quantity. There is no direct relationship between measurements in one scale and their equivalent in another scale or another hardness test.
Durometer (Shore D)	80

Curing Conditions

Curing Schedule

Curing Schedule
Curing schedule is the time and temperature required for a mixed material to fully cure. While this applies to materials that cure with heat, there are also other materials that can be cured with UV.

Even though some materials can cure on ambient temperatures, others will require elevated temperature conditions to properly cure.

There are various curing schedules depending on the material type and application. For heat curing, the most common ones are Snap cure, Low temperature cure, Step cure and Staged cure.

Recommended cure type, schedule, time and temperature can always be found on the Technical data sheets.

Full Cure Time

2.4x10¹ hours

Additional Information

T242 Cured Properties

Property	Value	Unit
Breakaway Torque Range on Steel (Steel 3/8-16 UNC, M10)	3.4–11.3	N⋅m
Breakaway Torque on Zinc-plated Surface (Steel 3/8-16 UNC, M10)	9	N⋅m
Prevail Torque Range on Steel Steel 3/8-16 UNC, M10), depending on surface	2.9–8.1	N⋅m
Prevailing Torque on Zinc-plated Surface Steel 3/8-16 UNC, M10)	4.6	N⋅m
Application Temperature	–50 to 150	°C
Solvent Resistance (60 °C) Water, oil, glycol, gasoline, transmission fluid ((Immersion Test)	80–100% retention of strength	–

Directions for Use

Apply adhesive to the male thread. The area does not need to be fully covered with the adhesive to achieve good locking torque.
Assemble the male and female threads together. Tighten to the desired torque within 5 minutes of assembly.

Curing Information
